Aalborg EX

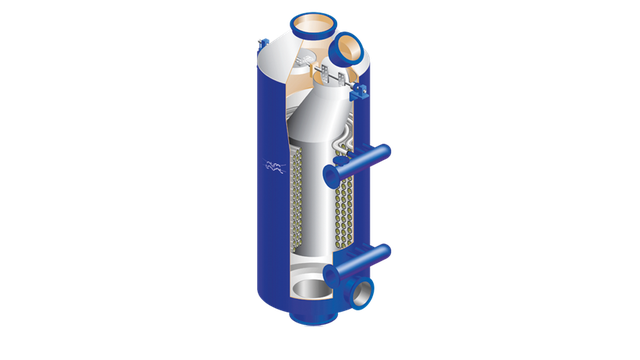

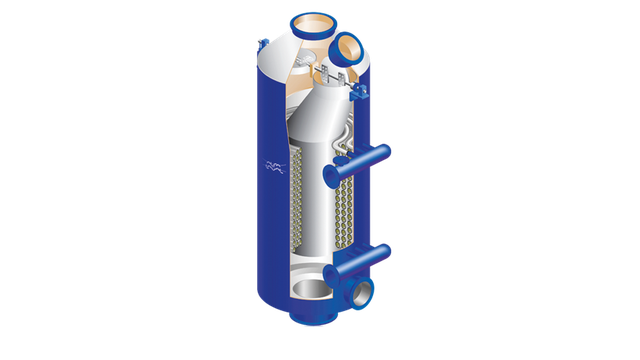

Alfa Laval Aalborg는 해양 열 유체 시스템 공급 분야의 세계 시장 리더입니다. Aalborg EX는 배기 가스에서 열을 회수하기 위한 강제 순환식 수직 히터입니다.

Aalborg EX是一种强制循环的立式加热器,用于从废气中的热量回收。-thermal fluid system

버너 및 컨트롤 시스템을 갖춘 열 유체 히터 장치의 엔지니어링 및 생산 외에도 Alfa Laval Aalborg는 다음 장비를 공급합니다.

  • Circulation
  • Valves
  • Expansion tanks
  • Dump coolers
  • Tank cleaning heaters
  • Heat exhangers
  • Electrical heaters
  • Unfired steam boilers
  • Spare parts

Safety and control systems

Alfa Laval Aalborg의 열 유체 시스템에는 사내 구축형 PLC 작동 제어판이 제공될 수 있습니다. 이 제어판의 12 인치 터치 스크린을 통해 작업자는 전체 난방 시스템과 상태를 명확하게 파악할 수 있습니다. 통신을 위한 서로 다른 종류의 필드 버스 연결은 두 번째 터치 스크린 연결 또는 시스템을 중앙 경보에 연결하는 것이 매우 간단함을 의미합니다.

Features and benefits

  • Forced-circulation vertical heater for recovering heat from exhaust gas
  • Designed with low pressure loss
  • On request equipped with integrated inlet and outlet boxes
  • Coils made of bare tubes
  • Integrated exhaust gas by-pass damper as an option (up to 80,000 kg/h exhaust gas flow)
  • Top-mounted water washing system for soot cleaning during non-operation and fire fighting
  • Soot cleaning system during operation fitted at exhaust gas inlet

Design data

  • Capacity: 100 - 5.000 kW
  • Design pressure:10/13 bar(g)
  • Thermal fluid design temperature:300 ºC

사용 방법

선박의 열 유체 시스템은 연료 오일 탱크, 분리기 및 연료 히터와 같은 다양한 종류의 열 소비자에게 열을 공급하고 역청, 석유 제품 및 화학 물질과 같은 모든 유형의 화물을 가열하는 데 사용됩니다.

또한 탱크 세척 시스템, 증기 발생기 및 중앙 난방 시스템이 전형적인 응용 분야입니다.
열 유체 시스템에서 생성된 열은 일반적으로 미네랄 오일인 전달 유체를 통해 선박의 열 소비자에게 전달됩니다. 펌프는 폐쇄 시스템을 통해 유체를 순환시켜 연료유 연소 히터와 이코노마이저를 통과시킵니다.

유체는 전체 공정 동안 액체 상태로 유지되어 가능한 최저 압력으로 고온을 가능하게 합니다. 시스템의 단순성과 오일의 보존 특성으로 이 시스템은 매우 안정적이고 유지 보수가 적은 솔루션입니다. 이 시스템은 작동하기 쉽고 시스템 설계로 인해 열 오일의 수명이 깁니다.

Advantages for shipyards

  • Fast and professional proposals
  • Complete engineered system solutions
  • More than 30 years of experience in thermal fluid technology
  • In-house production of core products
  • Simple system with a limited number of components to be installed
  • Delivery of all necessary system components
  • Compact heaters with a small footprint
  • Small heating surface in the tanks
  • Extensive list of references

Advantages for shipowners

  • High temperatures with low pressures
  • Fully automatic safety system
  • Low fuel consumption
  • Easy operation
  • Low maintenance costs
  • Long life of thermal fluid due to the optimal system design
  • Innovative capabilities of the complete Aalborg Industries Group
  • Integrated PLC control and Energy
  • Management System (EMS)
  • Global After Sales support network
