튜브 인 튜브 열교환기

Designed specifically for heating and cooling of sludge containing fibres and particles

  • Related services

당사의 전용글로벌 서비스 네트워크는 여러분이 어디에 있든 필요할 때 언제나 부품 및 전문 지식을 제공합니다. 더욱 우수한 가동 시간, 가용성 및 최적화를 보장함으로써 사용자를 안심시키고 투자수익률을 최대화합니다. 당사는 예측 가능하며 걱정 없는 운전을 위해 당사 서비스를 성능 계약에 통합하고 여러분과 협력할 수 있습니다.

서비스 알아보기

대표전화: 02-3406-0600
Email: southkorea.info@alfalaval.com

The new Alfa Laval Tube-in-tube heat exchanger is specifically designed for sludge which contains fibres and particles, making it ideal for heating and cooling of most wastewater sludge. The equipment consists of a single tube mounted inside an outer shell tube, so that the product medium flows counter-current through the inner tube, with the service medium around it.

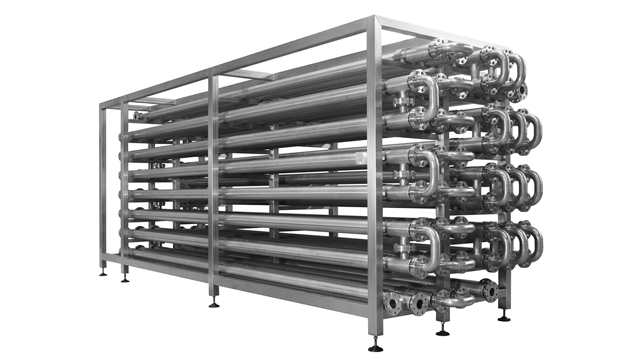

The unit features a fully welded construction with a bellow-on-shell tube to absorb thermal expansion. The Alfa Laval Tube-in-tube heat exchanger modules are typically connected in series and mounted on a frame. The shell tube is always smooth while the product tube is either corrugated or smooth depending on the application. The installation is maintenance free, thus eliminating any need for spare parts.

The layout of tube-in-tube heat exchangers can be customised to fit the available installation foot print or other customer requests.

사용 방법

The product medium inside the tube flows in counter current to the service medium. The product tube is corrugated or it can be smooth. The shell tube is always smooth.

The range of Alfa Laval heat exchangers makes it possible to choose the optimum heat exchanger for each duty.

Graphic representation of the flow pattern in the Alfa Laval Tube in Tube heat exchanger.

Graphic representation of the flow pattern in the Alfa Laval Tube in Tube heat exchanger.
