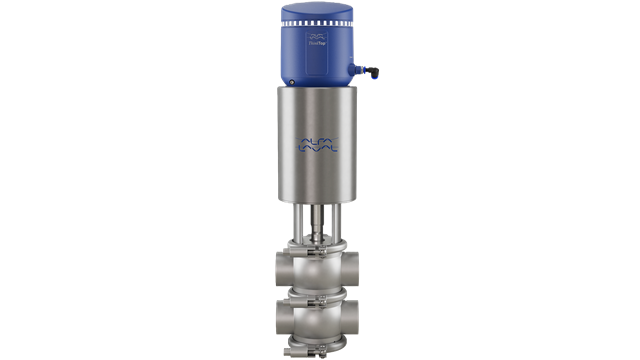

Unique SSV Pressure Relief Valve
Protect your hygienic processing lines—especially those with positive displacement pumps—with the Alfa Laval Unique SSV Pressure Relief Valve. Preventing overpressure safeguards efficiency, productivity and product safety. Customize this compact, modular valve, built on the proven Unique SSV platform, to meet your requirements. Equip this overflow valve with Alfa Laval ThinkTop technology for valve monitoring and control, while safeguarding process efficiency, productivity and safety.
Reliable pressure relief valve for your hygienic processing lines
- Keeps pressure within safe operating limits
- Ensures reliable performance with flexible, on-site setup
- Enhances efficiency and product safety through validated cleaning
- Ensures compliance with hygienic or aseptic process requirements
- Enables easy settings adjustment for precise pressure control and process safety
Safeguard your hygienic equipment from overpressure with the Alfa Laval Unique SSV Pressure Relief Valve. This adjustable PRV provides precise pressure control to maximize uptime, even in dynamic environments, making it ideal for the dairy, food, beverage, and home and personal care industries.
When powered by Alfa Laval ThinkTop technology, it proactively detects issues, ensures process and product safety, and seamlessly adapts to various operating conditions. It is fully CIP-able, no matter the pressure setting. Spare parts are interchangeable with other Unique SSV valves, simplifying maintenance and reducing service time, inventory and administration costs.
Boost efficiency while safeguarding your processing lines with the Unique SSV Pressure Relief Valve.
How does the Unique SSV pressure relief valve work

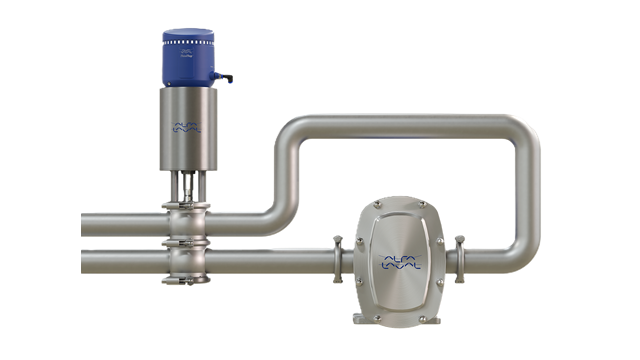

The Alfa Laval Unique SSV pressure relief valve work ensures system integrity by preventing overpressure in hygienic processing lines. Easily adjust the set pressure on site using the actuator’s adjustment screw to match your desired settings, which are always higher than the operating pressure, to safeguard critical equipment like positive displacement pumps.
When the operating pressure exceeds the set threshold, the valve opens against spring force, venting pressure and protecting your equipment, system and process from potential damage.
Fit the valve with Alfa Laval ThinkTop technology to monitor and control valve positions, enabling early issue detection, preventing failures and minimizing downtime. During cleaning-in-place (CIP), the valve opens fully—regardless of the set pressure—ensuring maximum hygiene and industry standards compliance.
