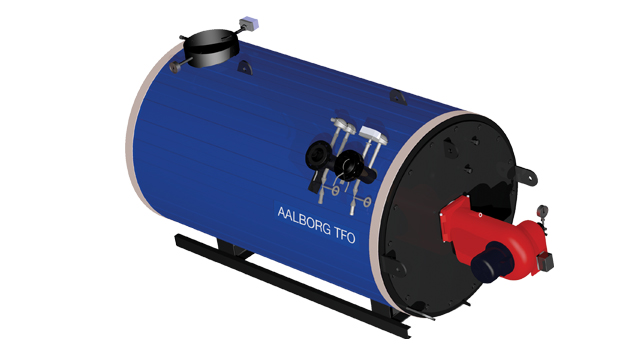

Aalborg TFO

Alfa Laval Aalborg는 해양 열 유체 가열 시스템을 공급하는 세계 시장의 리더입니다. 이 제품군에는 오일 또는 가스 연소식 열 유체 히터인 Aalborg TFO 제품이 있습니다.

阿法拉伐Aalborg TFO导热油系统

버너 및 제어 시스템을 갖춘 열 유체 히터 장치의 엔지니어링 및 생산 외에도 Alfa Laval Aalborg는 다음 장비를 공급합니다.

  • Circulation
  • Valves
  • Expansion tanks
  • Dump coolers
  • Tank cleaning heaters
  • Heat exhangers
  • Electrical heaters
  • Unfired steam boilers
  • Spare parts

Safety and control systems

Alfa Laval Aalborg의 열 유체 시스템에는 사내 구축형 PLC 작동 제어판이 제공 될 수 있습니다. 이 제어판의 12 인치 터치 스크린을 통해 작업자는 전체 난방 시스템과 상태를 명확하게 파악할 수 있습니다. 통신을 위한 서로 다른 종류의 필드 버스 연결은 두 번째 터치 스크린 연결 및 / 또는 시스템을 중앙 경보에 연결하는 것이 매우 간단하다는 것을 의미합니다.



Features and benefits

  • Constructed with a double coil system of large bare tubes
  • Removable top plate provide access for inspection and cleaning of the coils
  • Vertical or horizontal execution
  • Thermal fluid cooled flue gas bottom plate option
  • Low thermal fluid pressure drop
  • Three-pass flue gas configuration
  • Heavy insulation jacket

Design data

  • Capacity: 100 - 15,000 kW
  • Design pressure: 10/13 bar(g)
  • Thermal fluid design temperature: 280ºC

사용 방법

Thermal fluid systems

선박의 열 유체 시스템은 연료 오일 탱크, 분리기 및 연료 히터와 같은 다양한 종류의 열 소비자에게 열을 공급하고 역청, 석유 제품 및 화학 물질과 같은 모든 유형의 화물을 가열하는 데 사용됩니다.

또한 탱크 세척 시스템, 증기 발생기 및 중앙 난방 시스템이 전형적인 응용 분야입니다.
열 유체 시스템에서 생성된 열은 일반적으로 미네랄 오일인 전달 유체를 통해 선박의 열 소비자에게 전달됩니다.

펌프는 폐쇄 시스템을 통해 유체를 순환시켜 연료유 연소 히터와 이코노마이저를 통과시킵니다. 유체는 전체 공정 동안 액체 상태로 유지되어 가능한 최저 압력으로 고온을 가능하게합니다.

시스템의 단순성과 오일의 보존 특성으로 인해이 시스템은 매우 안정적이고 유지 보수가 적은 솔루션입니다. 이 시스템은 작동하기 쉽고 시스템 설계로 인해 열 오일의 수명이 길다.

Advantages for shipyards

    • Fast and professional proposals
    • Complete engineered system solutions
    • More than 30 years of experience in thermal fluid technology
    • In-house production of core products
    • Simple system with a limited number of components to be installed
    • Delivery of all necessary system components
    • Compact heaters with a small footprint
    • Small heating surface in the tanks
    • Extensive list of references

Advantages for shipowners

  • High temperatures with low pressures
  • Fully automatic safety system
  • Low fuel consumption
  • Easy operation
  • Low maintenance costs
  • Long life of thermal fluid due to the optimal system design
  • Innovative capabilities of the complete Aalborg Industries Group
  • Integrated PLC control and Energy
  • Management System (EMS)
  • Global After Sales support network
