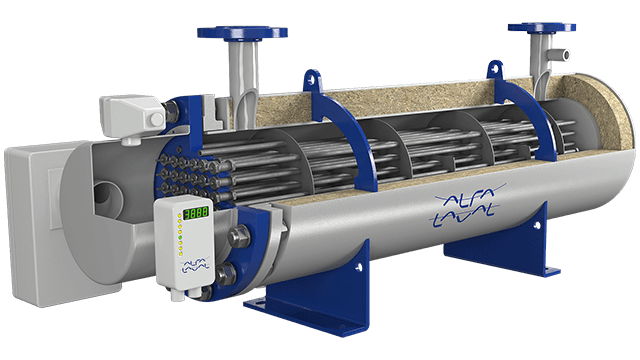

Aalborg EH-W

Type

• Electric flow-through, outflow or immersion heater with stainless steel elements

Application

• Heating of water and non-viscous fluids

Capacity

• Heat load: 15–486 kW

• Surface load (nominal): 10 W/cm2

• Input power: 380–690 V AC/DC

• Heating elements manufactured to suit customer-specific power source

Materials

• Carbon steel with stainless steel elements (other materials on request)

Design conditions

• Pressure: 10 bar(g)

• Temperature: 95°C

Installation

• Horizontal or vertical

Size

• Shell: Ø150–400 mm

• Heating element length: 1000–1200 mm (other lengths on request)

• Overall length: 1300–2000 mm

• Flanges: JIS 16K or EN1092-1

Equipment

• Two half-inch sockets on shell for mounting of safety valve and drain valve

• Safety thermostat

• Working thermostat with step or PLC control

• Sensor pocket at the outlet for the working thermostat

• Accessories (optional):

• Safety valve

• Drain valve

• Pressure gauge

• Thermometer

• Pt100 sensor

• Electronic or mechanical thermostat

Approvals

• ABS

• BV

• CCS

• DNV

• KR

• LRS

• NKK

• RINA

• PED

Delivery

• Within 7 weeks from receipt of order for all types

• Emergency deliveries within a few days for standard types

Warranty

• Operating warranty: 12 months

• Maximum warranty: 18 months from time of delivery
