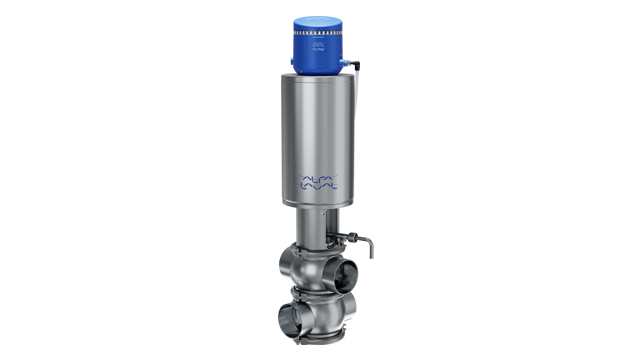

Unique Mixproof CIP
Efficiently manage Cleaning-in-Place (CIP) media at critical system distribution points with the Alfa Laval Unique Mixproof CIP valve. Purpose-built for CIP media routing, this lightweight, double-block-and-bleed valve ensures CIP line safety. It directs pressurized cleaning fluids toward the area that requires cleaning without the risk of cross-contamination. This versatile CIP valve adapts to process requirements while meeting hygiene standards.
Purpose-built double seat valve for safe, reliable and cost-efficient routing of CIP media
- Get the product safety you need by eliminating the risk of cross-contamination
- Enhance the reliability and flexibility of your process and CIP setup during operation
- Minimize the risk of unplanned downtime and time and resources spent on routine maintenance
- Improve sustainability and limit environmental impact by reducing the use of water and CIP media
- Lower the total cost of ownership with a proven, cost-efficient mixproof valve for routing cleaning media
Efficiently fill, empty and clean your processing and CIP lines without the risk of contamination with the Alfa Laval Unique Mixproof CIP valve. Cost-efficient double block and bleed valve protects product safety when operating, forwarding or reversing the flow of CIP media.

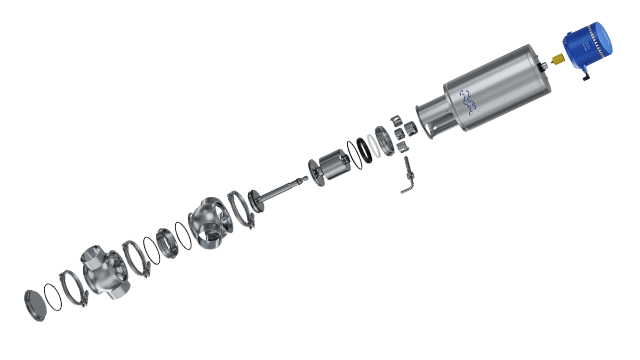

Its modular design makes it easy to adapt to various applications, capacity requirements and changing needs.
Maintenance is easy, with longer intervals between service. Moreover, you can reduce the use of water and CIP media.
Available in various sizes, the Unique Mixproof CIP valve ensures complete control of CIP media and, if required, can be mounted upside down.
How does the CIP valve work
The Unique Mixproof Alfa Laval CIP valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The double block and bleed valve has two independent plugs and a three-seal design to separate the process fluid from the cleaning media; the space between the seals forms a leakage chamber at atmospheric pressure under all operating conditions.
Leakage rarely occurs; however, if it should, the fluid flows into the leakage chamber and drains through the outlet for easy detection. When the valve is open, the leakage chamber is closed. The fluid then flows from one line to the other. The valve’s three-seal design minimizes spillage, and its self-cleaning function ensures the CIP media passes through surfaces that are sanitary.
With its balanced design, the mixproof Alfa Laval CIP valve primarily handles CIP media, ensuring complete control and eliminating water hammer. It can be mounted upside down. For increased holding pressures, support air can be applied.
Close at Hand 카탈로그
CAD portal
서비스
문의 사항이나 궁금한 점이 있으시면 언제든지 연락해 주시기 바랍니다.
애플리케이션 & 이노베이션 센터 둘러보기
설비 업그레이드를 결정하기 전, 귀사의 공정에 가장 적합한 최적의 장비를 찾고 실질적인 비용 절감 효과를 미리 검증하고 싶으신가요?
알파라발 Application & Innovation Center에서 이 모든 것을 직접 테스트하고 눈으로 확인하실 수 있습니다.
알파라발의 Optimize™
알파라발의 공정 최적화 솔루션인 Optimize™는 리스크 없는 최소한의 투자만으로 고객의 기존 공정 성능을 극대화합니다. 운영에 필수적인 물, 에너지 및 화학약품 사용량을 최대 90%까지 획기적으로 절감하여 경제성과 지속가능성을 동시에 실현합니다.
Protect your product
Get the product safety you need by eliminating the risk of cross-contamination and product loss, while ensuring efficient cleaning.
Boost your process
Enhance the reliability and flexibility of your process setup, with proven valve technology that matches the specific needs of your production.
Simplify your service
Minimize the risk of unplanned downtime, while spending as little time and resources as possible on routine maintenance.
Improve your sustainability
Limit your environmental impact, with greatly reduced water- and CIP media consumption and eliminated product loss.
Designed to maximize uptime in production, keeping service at a minimum.
Eliminate unnecessary product loss, thanks to spillage-free operation.
By adding the intelligence of Alfa Laval ThinkTop, you save up to 90% in water and cleaning media.
360° 서비스 및 유지보수
맞춤 추천

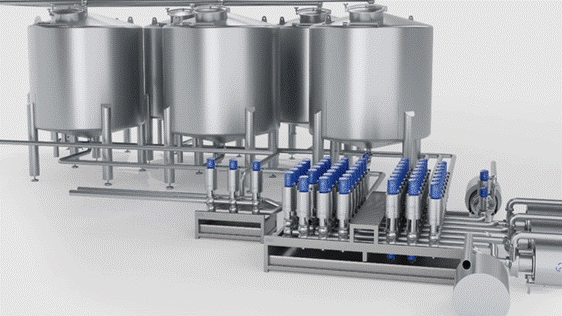

Secure Cleaning-in-Place and product safety with Unique Mixproof
The latest generation of Unique Mixproof valves are designed to provide product safety during hygienic processing. Along the way, they let you improve several other aspects of your operation.
Services for hygienic valves
To ensure continuous uptime for your hygienic processes, extend the lifetime of your hygienic valves. With Alfa Laval as your service partner, you have access to our global service network and experts when you need it and local support when it counts. Rely on our broad range of services to optimize your processes – whenever, wherever.
