C3 splitter reboiler

Save steam with Alfa Laval heat exchangers

저압 증기는 C3 스플리터 리 보일러의 일반적인 열원입니다. 담금질 오일 또는 물에 폐열을 사용하는 것이 훨씬 더 경제적인 해결책입니다.

이와 같은 개조는 필요한 열 전달 면적이 매우 커 쉘 앤 튜브를 사용하는 것이 불가능해 보일 수 있습니다.

그러나 이 위치에 Alfa Laval Compabloc 열교환기를 사용하면 문제가 해결됩니다.

Compabloc은 높은 열 효율을 가졌지만 유사 쉘 앤 튜브 설치 공간의 50-80 % 만 차지합니다.

Example

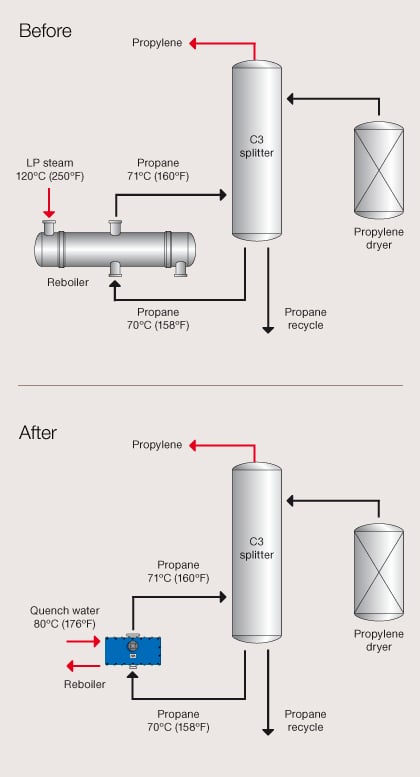

Exchanging an existing shell-and-tube C3 splitter reboiler for a Compabloc in a standard-sized plant gives you the following savings:

  • Increased heat recovery: 3.8 MW
  • Energy savings: €1,140,000 fuel or steam
  • Reduced cooling-water temperature, fixed flow 1,000 m3/h (4,400 gpm): 3°C (5.4°F)
  • Reduced cooling-water flow, fixed ΔT = 10°C (18°F): 300 m3/h
    (1,320 gpm)
  • Reduced CO2 emissions: 5,600 tonnes/year

Using a more efficient heat exchanger as reboiler allows you to use quench water as heat source instead of steam.
