A gas-to-liquid heat exchanger that can handle more

The Alfa Laval GL product line is an ultra-compact, high-efficiency solution engineered to meet the unique challenges of simultaneously working with gas and liquid media. A revolutionary new design handles very high temperatures with very low pressure drop. Manufactured with Alfa Laval’s proven copper-brazing technology, they also ensure the reliable performance you expect from the world leader in thermal transfer.

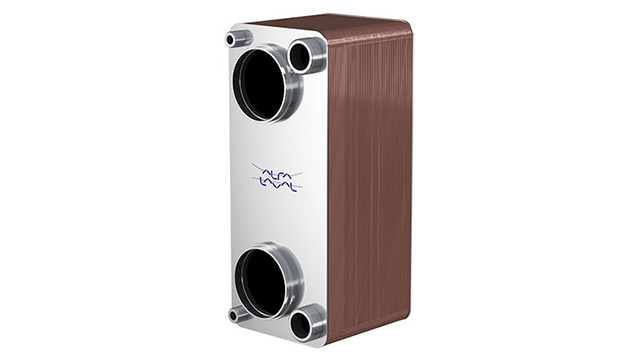

GL150 Left

Handle more with brazed gas-to-liquid technology

  • Our standard gas-to-liquid models support gas temperatures up to 750°C
  • For special applications, temperatures above 1400°C are possible
  • Very low pressure drop in asymmetric applications thanks to patented “dimple” plate design
  • Condensate from the gas medium drains easily thanks to condensate connection included with the unit

The Alfa Laval GL product line is the perfect choice for numerous asymmetrical heat transfer applications. They are designed with a lightweight brazed construction that offers much greater thermal efficiency and is typically 75% smaller than shell-and-tube designs used for similar duties. Furthermore, while normal copper-brazed plate heat exchangers can often only handle temperatures up to 225°C, our GL product line supports much higher temperatures with no risk of thermal fatigue. This enables superior performance in high-temperature exhaust gas duties as well as in all types of condensation applications.


사용 방법

Alfa Laval gas-to-liquid heat exchangers use thin, corrugated stainless steel plates to provide heat transfer from one medium to the other. Copper brazing seals the media in the plate pack, resulting in a high-efficiency heat exchanger that consists solely of surfaces that actively contribute to heat transfer. Contact points between the plates are also brazed, which improves resistance to pressure and temperature fatigue.

The arrangement of the channels formed between the plates ensures that media flow through alternate channels in a countercurrent pattern, which further optimizes the efficiency of the heat transfer. One channel is far larger than the other channel, enabling the unit to handle very large volumetric flow rates.


Are you ready to handle more?

Curious about what our GL product line can bring to your business? Download an overview of our gas-to-liquid portfolio to learn more about how customers use this technology in a number of different applications. You will also find product configuration information as well as technical specifications.

See for yourself

As efficient technology with a very small footprint, Alfa Laval’s GL plate heat exchangers can be used in positions throughout your process. View this example animation to learn more and see for yourself just how compact they truly are!

난방 및 쿨링 분야 최신 기술을 위한 허브

열교환 분야에서 수십 년 동안 쌓아온 경험과 전문성을 바탕으로 Alfa Laval은 오늘날의 난방 및 쿨링 문제에 대처할 수 있는 풍부한 리소스를 제공합니다. 에너지 효율성에서 천연 냉매까지 모든 복잡한 문제에 대한 해답을 찾고 우리의 유용한 도구를 활용해서 용도에 꼭 맞는 기술을 간편하게 찾으십시오.


Contact us

Do you need the power to handle more in your gas cooling applications? Contact us today to learn more about the complete portfolio of Alfa Laval gas-to-liquid plate heat exchangers. Our experts can work with you to find the optimal model to fit your specific needs.
